L Band – Single Port

1.20-2.20GHz

SATCOM or MANET

High Gain

4+dBic

On the move or at the pause

Omnidirectional

Small Designs. Big Performance.

Specifications

Download Spec Sheet Here

Introducing our latest innovation: the L Band Antenna for SATCOM and MANET (1.20GHz – 2.20GHz). Developed in response to direct customer feedback after the successful launch of our previous antennas, NanTenna brings its pioneering and patented design approach to this cutting-edge market. The NanTenna L Band Antenna offers superior gain, improved look angles, and significantly broader and more consistent performance than its closest competitors. Engineered for durability, our antennas are perfect for even the most challenging missions.

  • 1.20GHz-2.20GHz
  • 4+dBic
  • RHCP
  • Omnidirectional radiation pattern
  • 10-20w power handling

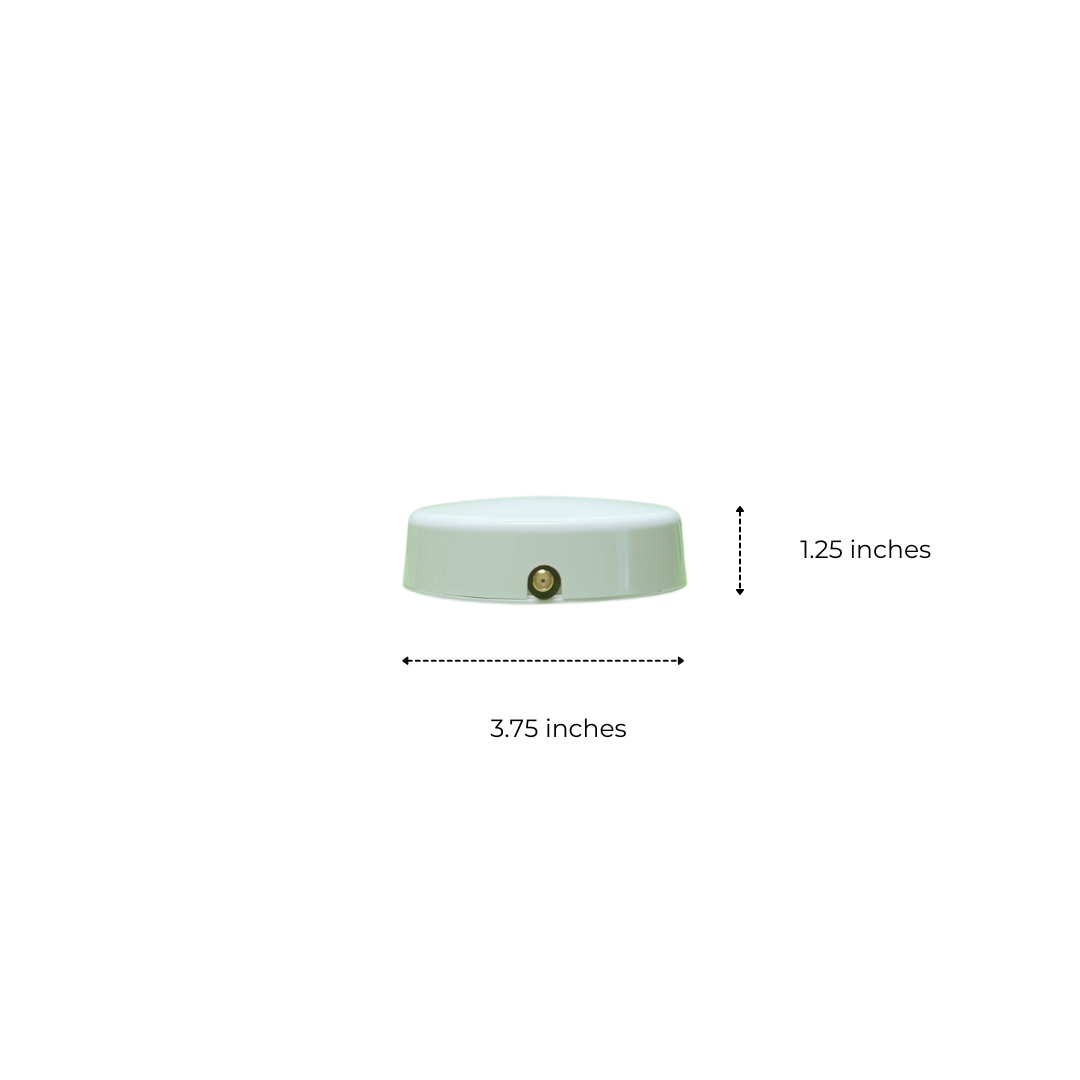

  • 3.75″x1.25″
  • SMA (f) connector
  • Magnet/bolt mountable
  • IP68 certifiable
  • Radio/modem/waveform agnostic
  • Purchasable through integrators, resellers, DLA, credit card, or direct award
  • Patent pending
